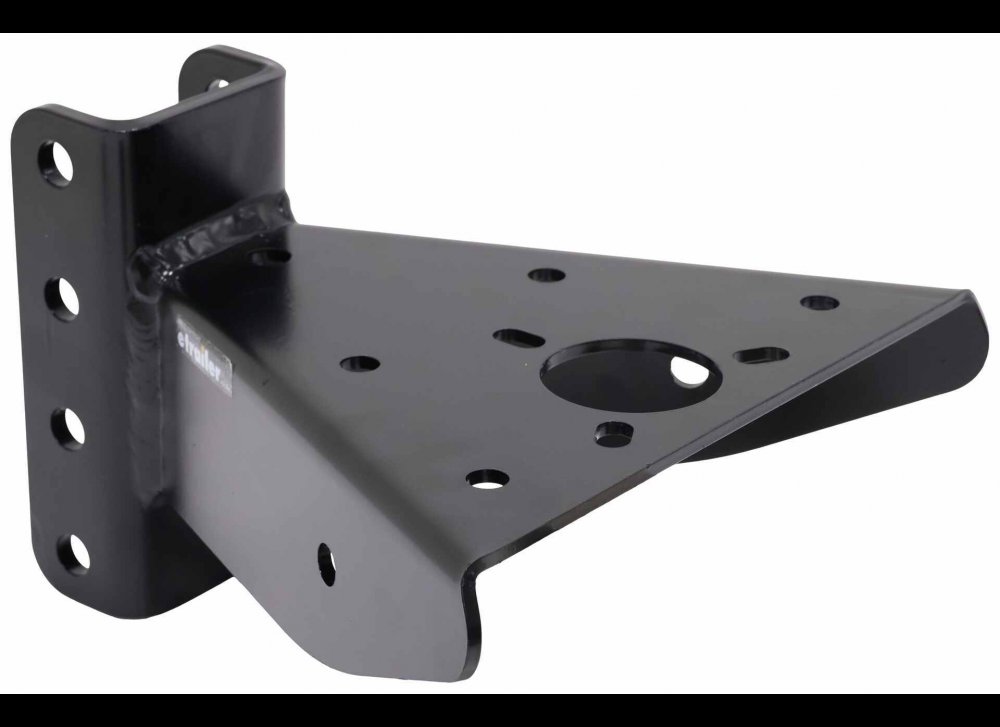

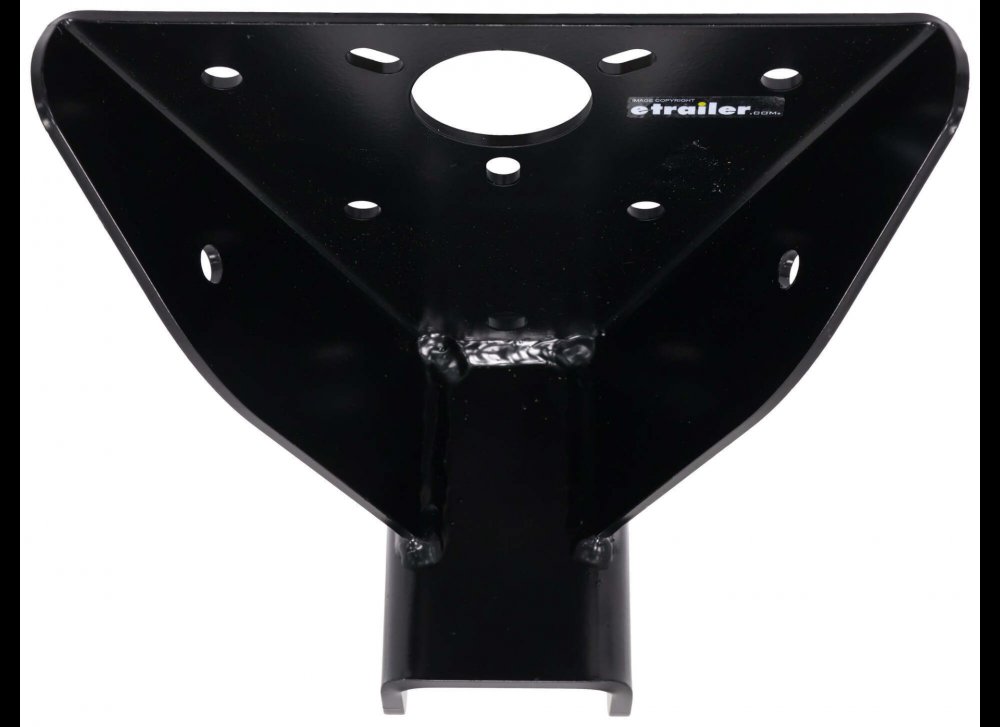

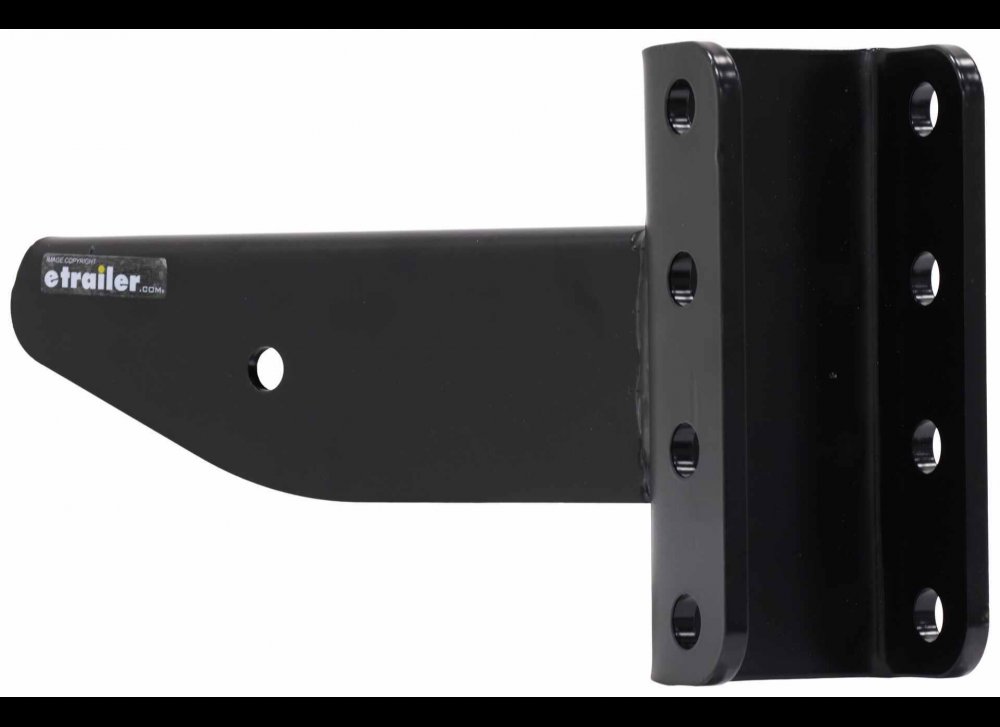

A-FRAME BOLT ON ADJUSTABLE TRAILER COUPLER, C-CHANNEL, 4 HOLE, SILVER, VERTICAL C CHANNEL - 11K CAP

This A-frame coupler makes it easy to tow your trailer level and to tow with anything you got, like a lunette ring, clevis hitch, or standard ball coupler. It can either bolt or weld onto your trailer frame, and it comes with a cutout for your jack.

Features:

Channel bracket had 3 mounting positions for coupler (sold separately)
Tow your trailer level
Attach a channel-mounted Lock 'N' Roll coupler, lunette ring, clevis hitch, or ball coupler
Built-in cutout for jack stand
Steel alloy construction
Bolt-on installation - attaches to the top of the frame
You will also need to drill additional horizontal bolt holes or weld to the trailer frame

Specs:

Application: 50-degree A-frame trailers
Maximum gross trailer weight: 11,000 lbs
Maximum tongue weight: 1,100 lbs
Channel width: 3"
Channel bolt holes:
Hole diameter: 5/8"
Spaced 2" apart
Trailer frame bolt holes: 17/32" diameter

TS540 Lock and Roll 50 Degrees A-Frame Coupler with Adjustable Channel Mount - Built-in Jack Hole - 1,100 lbs
