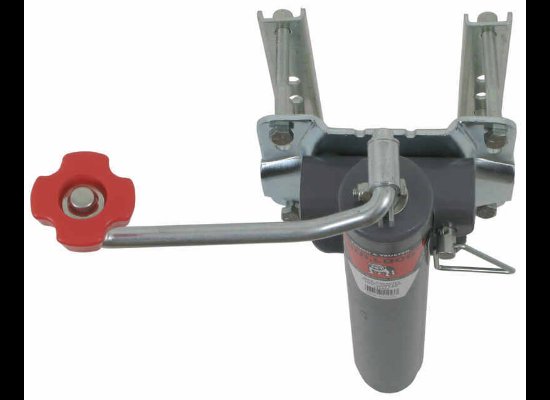

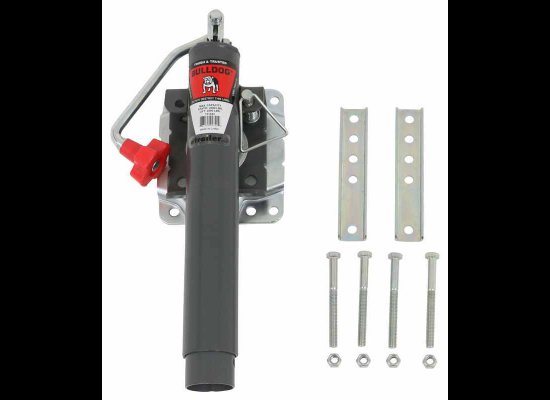

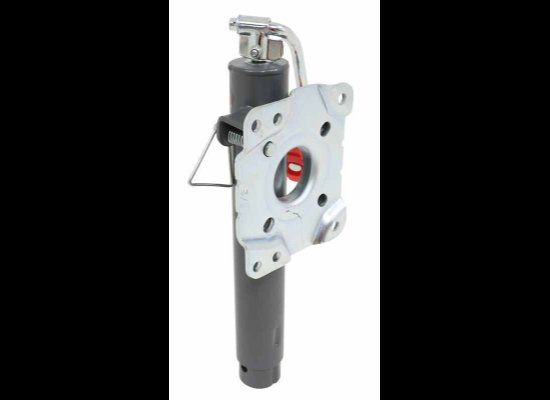

BULLDOG ROUND SNAP-RING SWIVEL JACK - BOLT ON - TOP WIND 10" LIFT - 2,000LBS

- Bracket height: 11" Retracted , 21" Extended
- Lift: 10"
- Clearance: 4" from mounting bracket to top of jack
- Application: up to 3" x 4" tongue
- Inner tube diameter: 2"
- Outer tube diameter: 2-1/4"
- Handle radius: 6-5/8"
- Plunger pin diameter: 1/2"
- Lift capacity: 2,000 lbs
