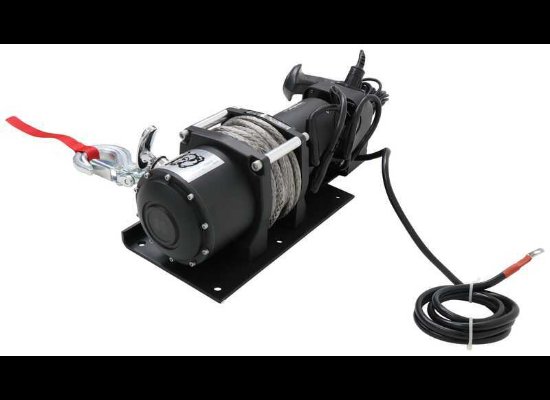

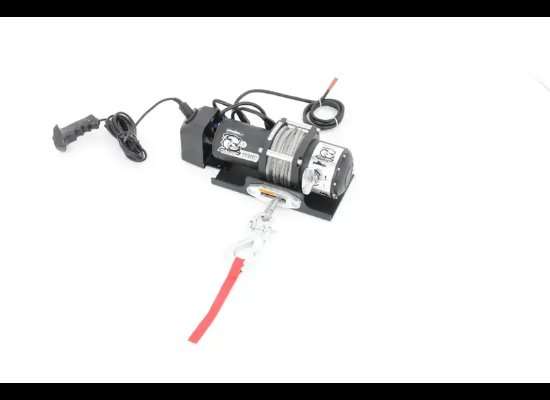

BULLDOG WINCH - SYNTHETIC ROPE - HAWSE FAIRLEAD - 7,800LBS - WITH BRACKET AND MOUNTING HARDWARE

- Rated line pull (with a single layer of synthetic rope around the drum):
- Static load: 7,800 lbs
- Rolling load: 78,000 lbs
- Motor: 12-volt DC
- Line pull at 0 lbs:
- Power draw: 80 amps
- Line speed: 10 FPM
- Line pull at 7,800 lbs
- Power draw: 330 amps
- Line speed: 4 FPM
- Gear ratio: 218:1
- Duty cycle: 2 minutes on/15 minutes off
- Braking: 100-percent load-holding mechanical

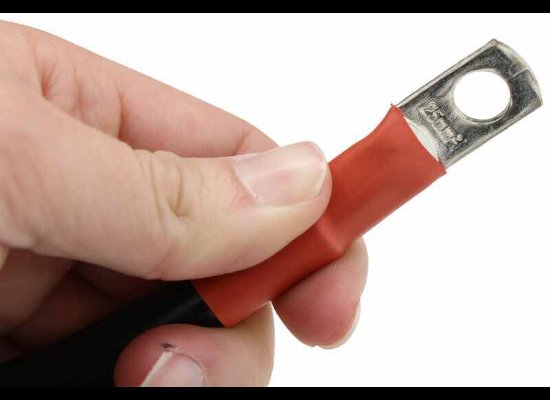

- Battery lead wire: 3 gauge
- Battery lead length: 6'
- Rope dimensions: 50' long x 5/16" (8 mm) diameter
- Winch dimensions: 15" long x 8" wide x 6-1/2" tall
- Drum dimensions: 2-1/2" diameter x 2-11/16" long

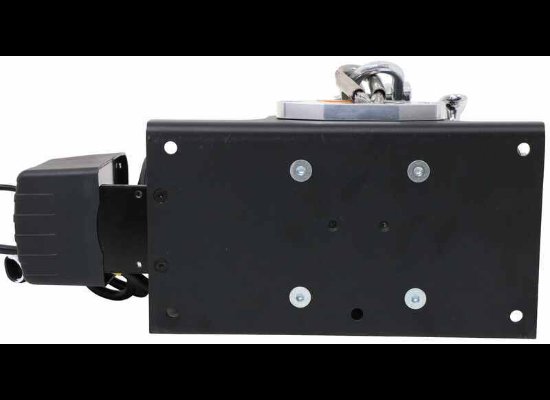

- Mounting bolt pattern:
- Winch: 4-1/2" x 4"
- Plate: 12" x 5-13/16"
- Distance between hawse fairlead mounting holes (center to center): 6-15/32"
- Minimum winch box/cabinet size: 20" wide x 10" tall
- Winch weight (with synthetic rope installed): 60 lbs
- Recommended battery size (for maximum power): 650 CCA
