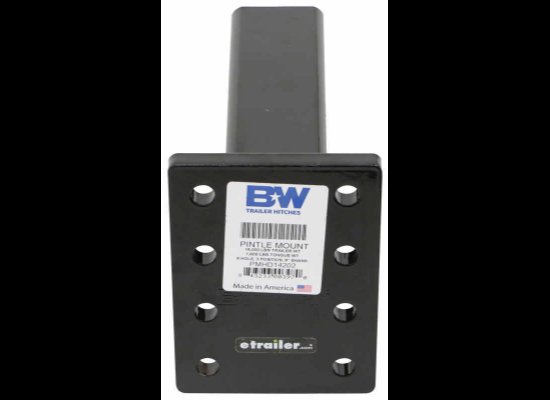

B&W PINTLE HOOK MOUNTING PLATE FOR 2.5" HITCH 9" SHANK - 8 HOLE 16K

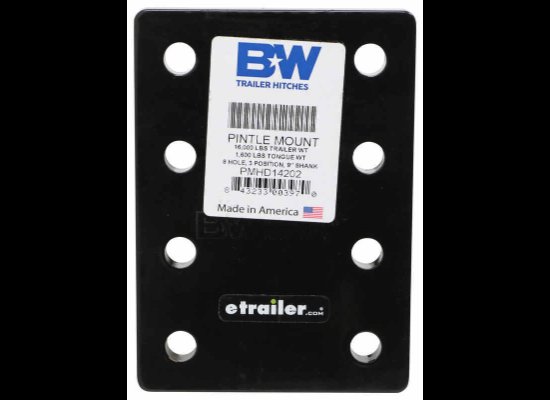

The 8 holes in this pintle plate provide 3 different mounting positions for your pintle hitch so that you can match your trailer height. Ideal for industrial and agricultural applications. Powder coat finish is corrosion resistant.

Features:

Hitch-mounted adapter plate provides a mounting point for a pintle hook (sold separately)
3 Positions let you customize the height of the pintle
Sturdy steel construction
Corrosion-resistant black powder coat finish
Hitch pin and clip or hitch lock sold separately
Made in the USA

Specs:

Application: 2-1/2" x 2-1/2" trailer hitch receivers
Weight capacity: 16,000 lbs
Mounting plate dimensions: 7" long x 5" wide
Mounting holes:
Vertical: 1-3/4" apart on center
Horizontal: 3-3/8" apart on center

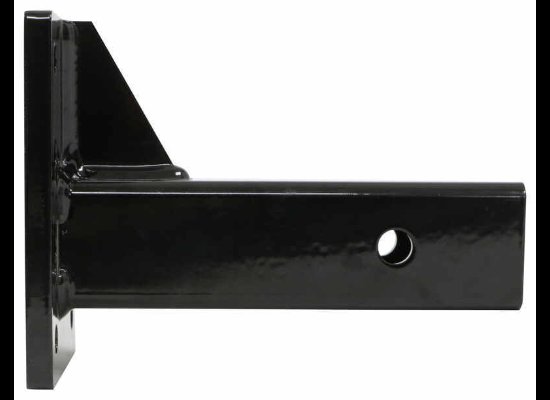

Length: 6-1/2" from center of hitch pin hole to mounting plate
4-1/8" From center of hitch pin hole to the closest edge of the gusset
Shank length: 9"
Pin hole diameter: 5/8"

PMHD14202 B and W Pintle Plate - 2-1/2" Hitch - 9" Shank - 8 Hole - 16,000 lbs
