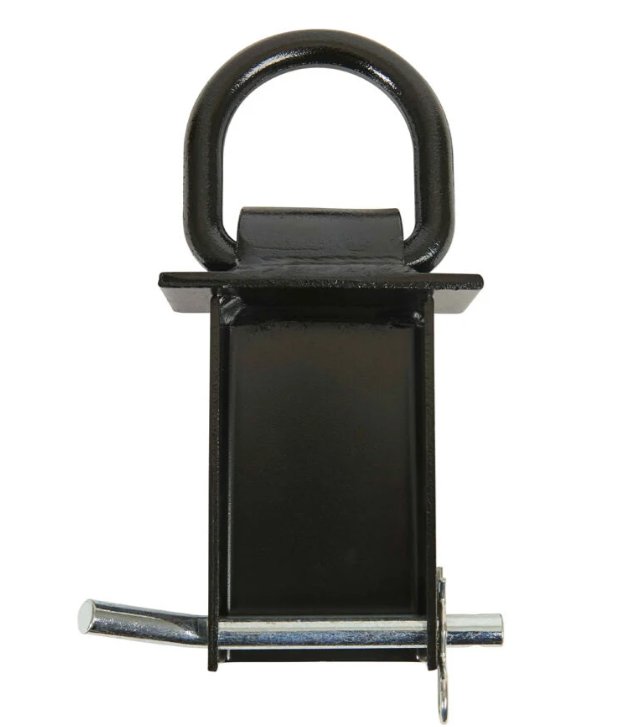

D-RING FORGED DROP IN STAKE POCKET D-RING, FOR 2"X4" STAKE POCKET, 5,400lbs WLL, 5/8" D-RING

5/8" Forged D-Ring
Fits 3.75" ID Stake Pockets (Standard 2 x 4 Stake Pockets)
Working load limit is 5,400 lbs
Capacity: 16,200 lbs

DIMENSIONS:

5.5" Tall from the bottom of mounting plate to the bottom of the anchor.
3-3/8" Wide.
5" from bottom of the mounting plate to the top of the 4th pin hole.
4.25" from bottom of the mounting plate to the top of the 3rd pin hole.
3.5" from the bottom of the mounting plate to the top of the 2nd pin hole.
2.75" from the bottom of the mounting plate to the top of the 1st pin hole.

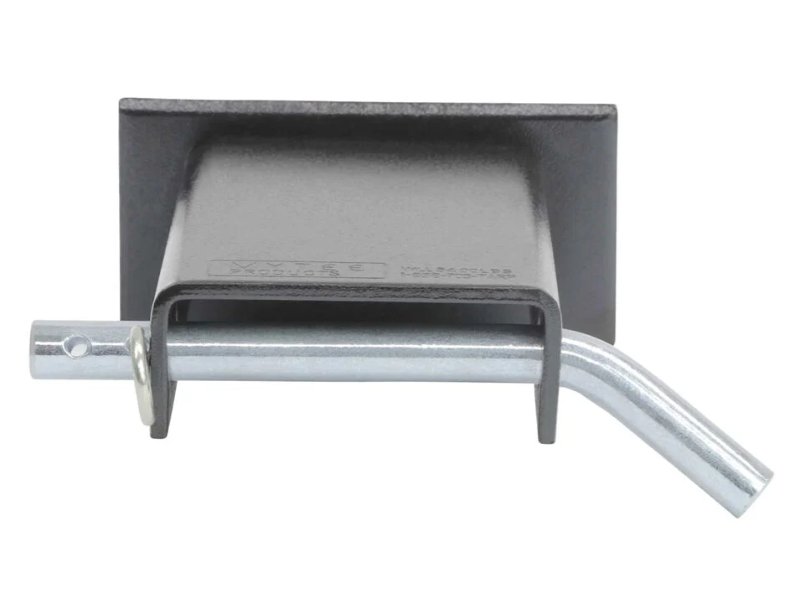

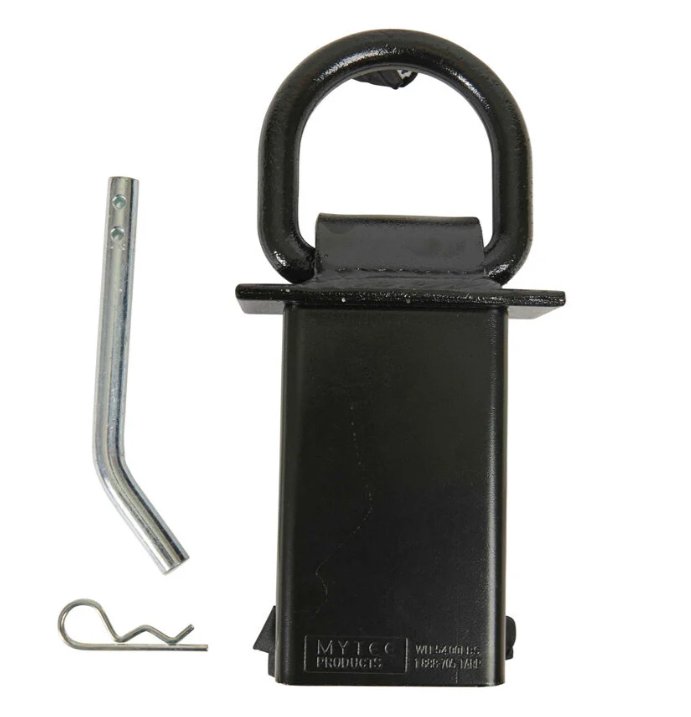

Bent pin is 6-3/4" long and the clip is 3" long that goes inside it.
