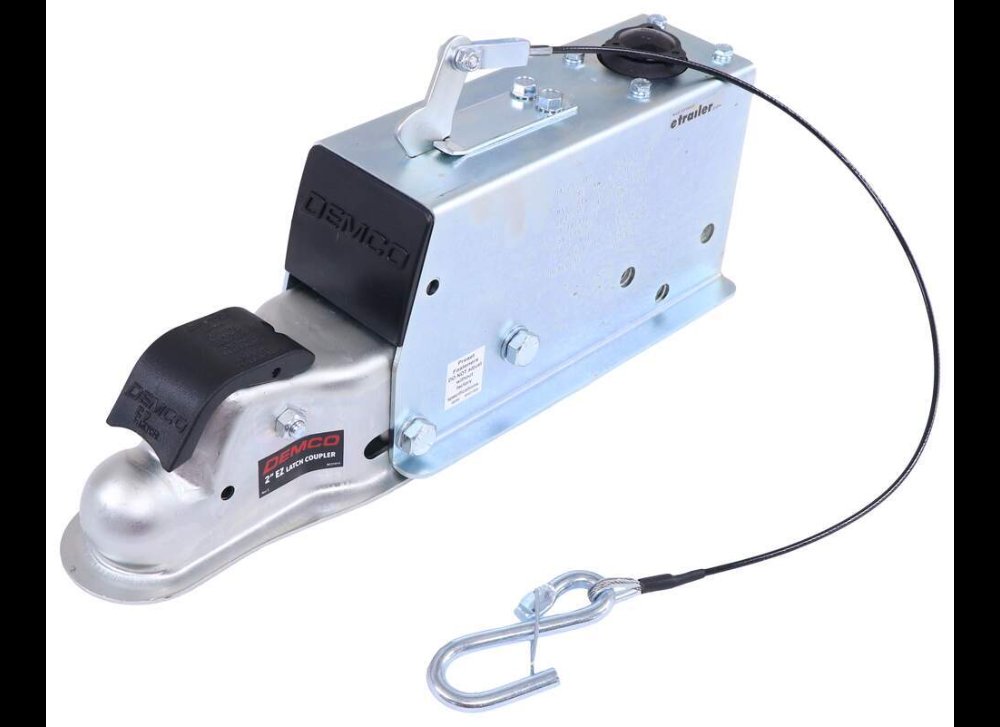

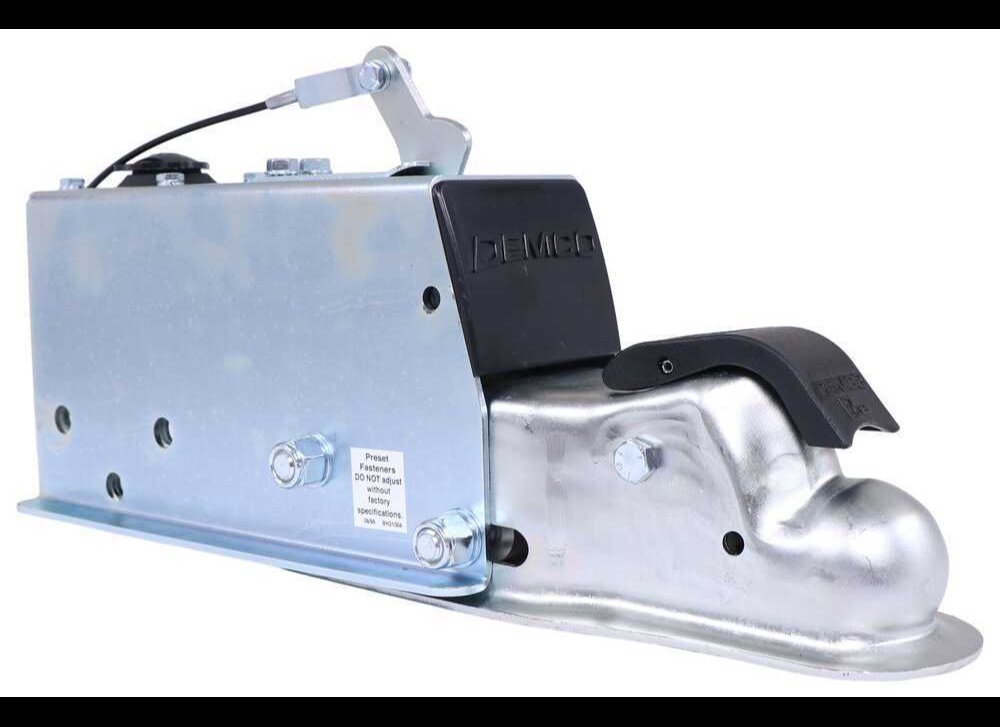

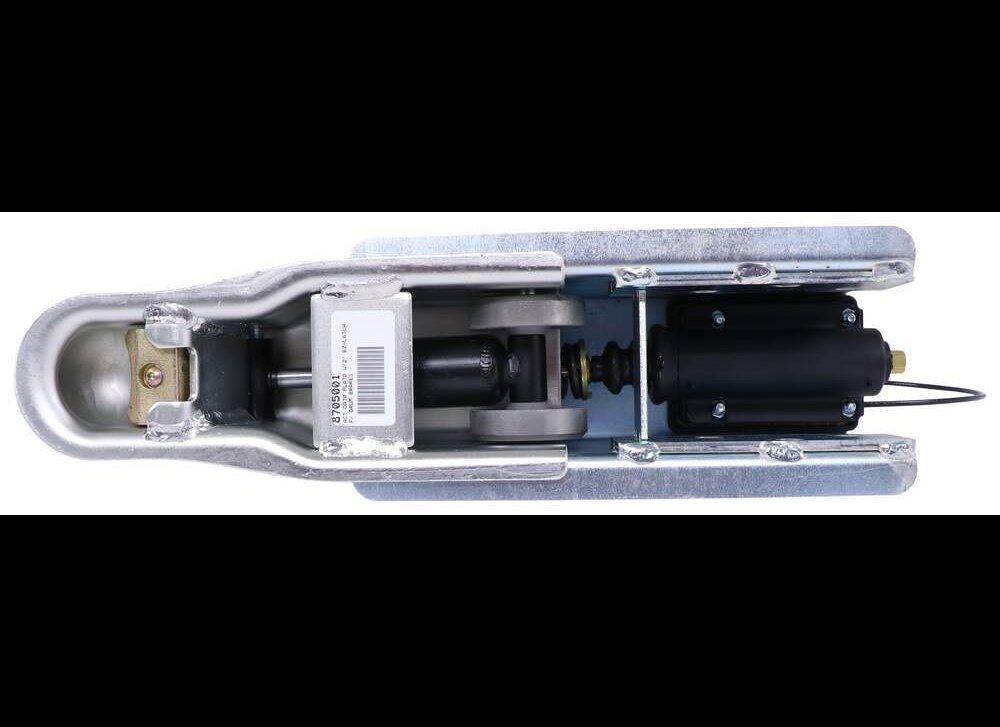

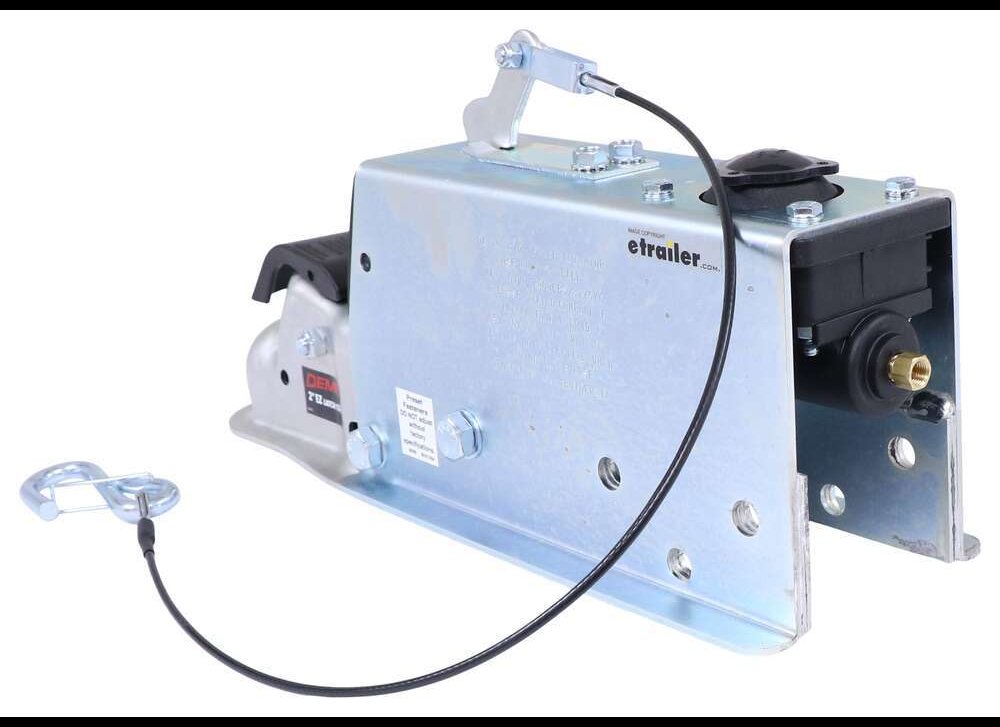

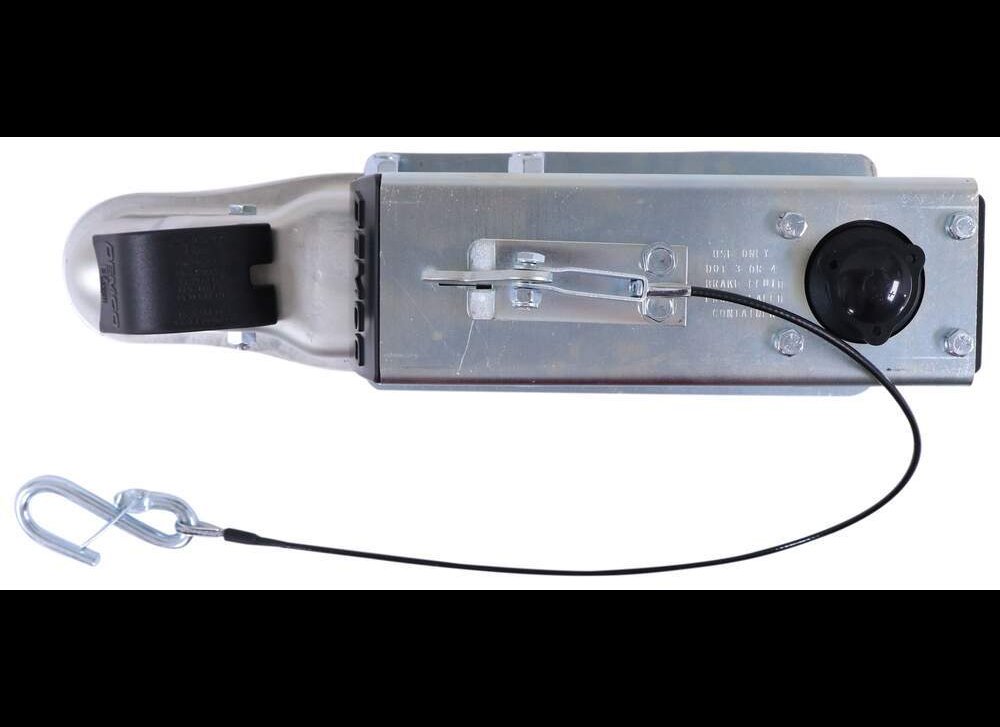

DEMCO DA70 HYDRAULIC BRAKE ACTUATOR, ZINC COATED, 2" BALL, FOR DRUM BRAKE ASSEMBLIES, 7K CAPACITY

Features:

Activates your trailer's drum brakes when tow vehicle slows or stops - no brake controller needed
EZ-Latch coupler mechanism for simple, secure hookup and disconnect
Lets you hook up when latch is in closed position - just drop coupler over hitch ball and latch will snap into place
Zinc plating offers corrosion resistance
120-Hour salt spray ratingt
Glass-reinforced nylon construction resists rust and corrosion
Large reservoir provides increased capacity for brake fluid
Automotive-style diaphragm cap creates completely enclosed system to help prevent contamination of fluid
Breakaway included
Includes breakaway cable with snap hook
Constructed of heavy-duty steel with sturdy, reinforced outer casing

Specs:

Application: trailers with hydraulic drum brakes

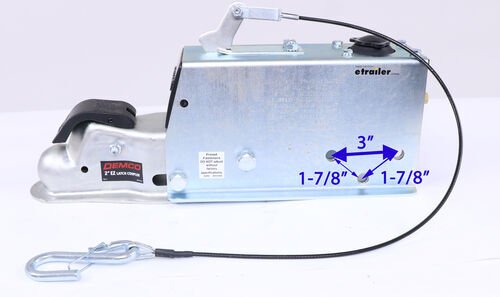

Designed to fit straight, 3" wide trailer tongue
Ball size: 2"
Gross towing weight: 7,000 lbs
Mounting: straight, 3" wide trailer tongue
Model number: DA70

Replaces Atwood 85778 Surge Brake Actuator - Drum Model

*** Special order item, not normally stocked ***
