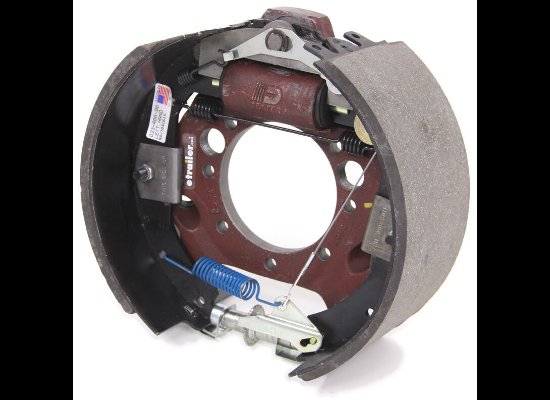

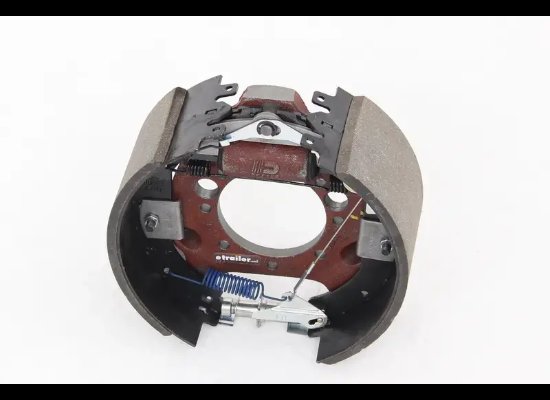

ELECTRIC BRAKE ASSEMBLY 12-1/4"X5", DEXTER 7-BOLT MOUNT, LEFT SIDE LS, 15K CAPACITY PER PAIR

Dexter 12-1/4" x 5" 15,000lb (7 bolt flange) Left hand hydraulic brake. Complete assembly. Self-adjusting design keeps shoes properly aligned for longer-lasting brake that requires less maintenance. Mounts with 7 bolts (not included).
Nuts-6-17, bolts-7-116, and washers-5-8 are sold separately.

Was redesigned with forward self-adjusting feature in 1997.

Fits Dexter 15,000lb axles(with cast backing and 7 bolt flange)
For use with a 12 1/4" inside diameter 5" deep drum
Shoes are 5" wide
Self-adjusting
Left hand(driver's side)
Complete assembly ready to install

Details

Brake Type: Hydraulic Drum
Brake Adjustment Type: Nev-R-Adjust®
Brake Size :12-1/4" x 5"
Axle Capacity Rating Per Pair: 15K
Brake Orientation: Left Side
Brake Backing Plate Mounting Bolt Holes: 7
Brake Mounts To: Axle Brake Flange / Spindle
Brake Caliper / Cylinder Type: Dual Servo
Fits Spindle: DX Spindle
Brake Backing Plate Material: Steel
Brake Backing Plate Finish: Painted
Brake Shoes / Pads Material: Semi-metallic
Kitted Options With Hardware: K23-406-00
Brake Backing Plate Co
