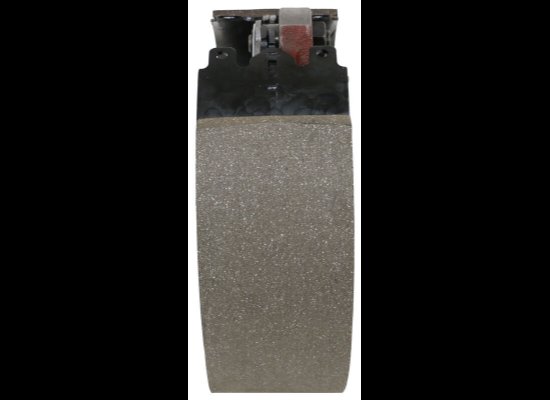

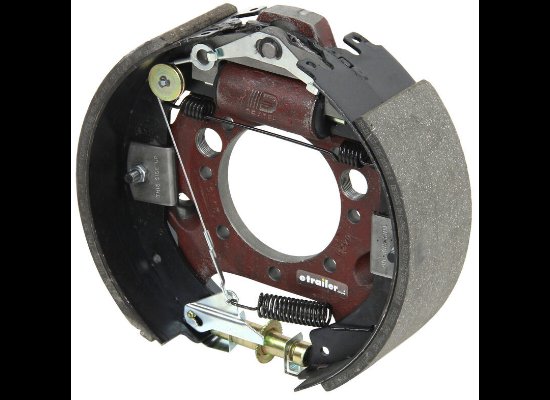

ELECTRIC BRAKE ASSEMBLY 12-1/4"X5", DEXTER 7-BOLT MOUNT, RIGHT SIDE RS, 15K CAPACITY PER PAIR

12-1/4" x 5" Passenger's-side hydraulic trailer brake assembly features a dual-plunger design. Mounting flange has a 7-bolt pattern. Self-adjusting brakes require little maintenance. Fits 15" or larger wheels.

Features:

Hydraulic drum brake assembly is designed for use with a surge-type trailer brake actuator
Dual-plunger design delivers same amount of braking when driving either forward or in reverse
Self-adjusting brakes automatically adjust to deliver optimum performance and braking power
No need for manual brake adjustments
Proper adjustment leads to better brake efficiency and less wear on your tow vehicle's brakes
Mounting bolts and hardware sold separately
Made in the USA

Specs:

Application: most standard hub-and-drum assemblies, including Dexter and Lippert (LCI)
Configuration: right hand (passenger's side)
Dimensions: 12-1/4" diameter x 5" wide
Mounting flange bolt pattern: 7 bolt
Wheel size: 15" or larger
Axle rating: 15,000 lbs

K23-407-00 Dexter 12-1/4" Duo-Servo Hydraulic Brake Assembly - RH - Self Adjust - 15K
Replaces 180300 and 23-407
