ELECTRIC DRUM BRAKE ASSEMBLY LH, 8K Per Pair 12-1/4" X 3-3/8" , 4 BOLT - RETAIL BOXED

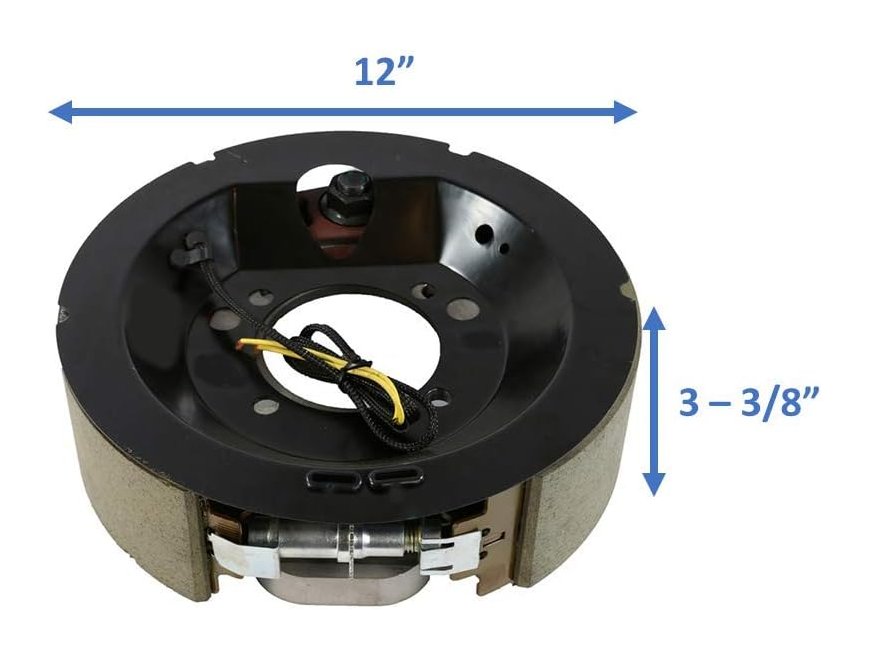

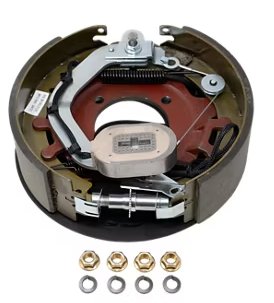

12-1/4" x 3-3/8" 8,000lbs-9,000lbs(with a 4 bolt flange) Left hand electric brake. Complete assembly. Axle bore diameter: 3-7/8". Mounts with 4 bolts (not included). Locknuts-6-46 and bolts-7-97 sold separately.

These components have passed the CSA Standard CAN3-D313-M85 For Trailer Running Gear, a stringent standard mandated by the Government to assure brake effectiveness and structural integrity of the components.
ISO/TS 16949:2002 certified

- Fits Dexter 8,000lb-9,000lb axles(with cast backing and 4 bolt flange)
- For use with a 12 1/4" inside diameter and 3 3/8" depth drum
- Shoes are 3-3/8" wide
- Left hand(driver's side)
- Complete assembly ready to install

Details

Brake Type: Electric Brake
Brake Adjustment Type: Manual Adjust
Brake Size: 12-1/4" x 3-3/8"
Axle Capacity Rating Per Pair: 8K
Brake Orientation: Left Side
Brake Backing Plate Mounting Bolt Holes: 4
Brake Mounts To: Axle Brake Flange / Spindle
Brake Magnet Shape: Oval
Brake Backing Plate Material: Steel
Brake Shoes / Pads Material: Semi-metallic
