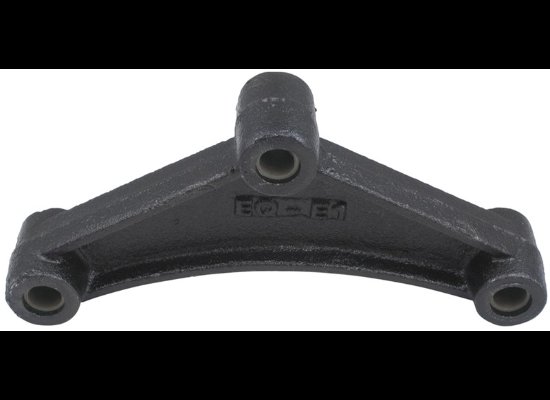

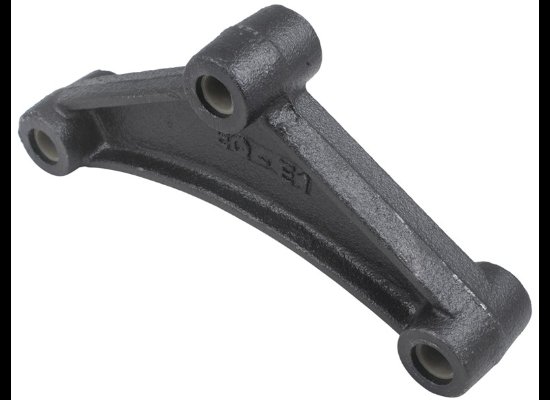

Curved Equalizer for 1-3/4" Wide Double-Eye Springs - 7-3/4" Long - 9/16" Center Hole

7-3/4" Long curved equalizer connects double-eye springs on tandem- or triple-axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed. Center bolt hole is 9/16" in diameter.

Features:

Connects double-eye springs on dual- or triple-axle trailers
Springs attach to ends of equalizer with shackle straps (sold separately)
Equalizer is suspended from center hanger (sold separately)
Transfers load and sudden impacts from one axle to another by permitting movement between the axles
Distributes weight evenly
Results in smooth ride for trailer
Includes bushings

Specs:

Fits 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
Center bolt hole diameter: 9/16"
Dimensions:
Distance between left and right bolt holes (center on center): 7-3/4"
Distance between hanger bolt hole and side bolt hole (center on center): 3-7/8"
Height of side bolt hole to hanger bolt hole: 2-7/8"

TSW EQ1 Curved Equalizer - 7-3/4" Long x 2-7/8" Tall
Replaces A2252CB and TSW 2252
