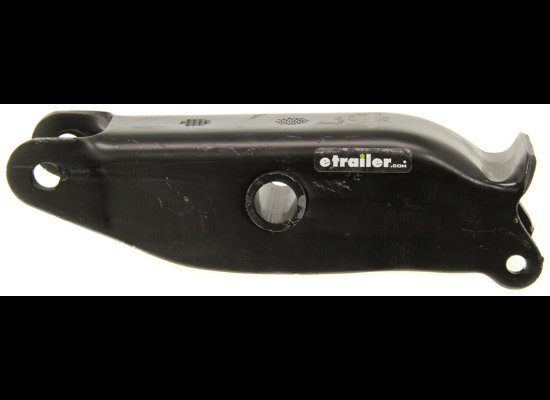

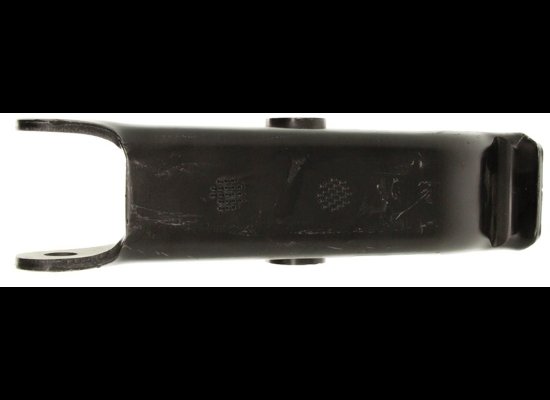

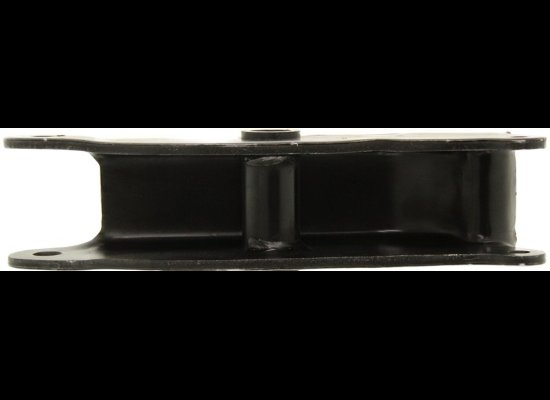

Swan-Shaped Equalizer for 2" Wide Slipper Springs - 10-1/8" Long - 7/8" Center Hole

10-1/8" Long, swan-shaped equalizer connects slipper springs on tandem- or triple-axle trailers and transfers impact between the axles to ensure that the load is evenly distributed. Fits springs with 9/16" diameter eye.

Features:

Connects slipper springs on dual- or triple-axle trailers
Attach one spring with bolt through the eye
Slip arched end of other spring into equalizer
Suspend equalizer from center hanger (sold separately)
Transfers load and sudden impacts from one axle to another
Distributes weight evenly
Results in smooth ride for trailer

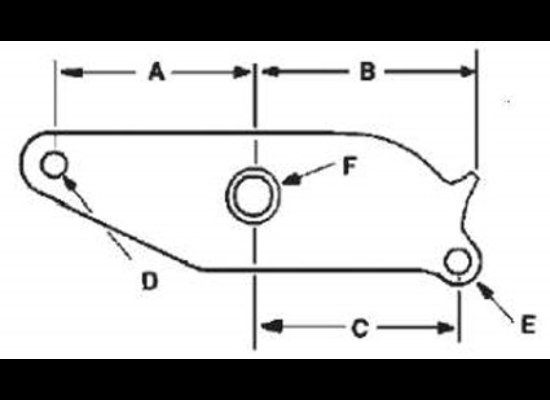

Specs:

Fits: 2" wide slipper leaf springs
Center bolt hole diameter: 7/8"
Side bolt hole diameter (for mounting spring): 9/16" diameter
Side bolt hole diameter (for keeper bolt): 5/16"

Related part numbers and quantities required:

(4) 3-1/4" Long x 5/16" diameter spring keeper bolts (7-7)
(4) 5-/16" Diameter locknuts (6-11)
(4) 3-1/2" Long x 9/16" diameter shackle bolts (91635B)
(4) 9/16" Diameter locknuts (916DLN)
(2) 4-1/2" Long x 7/8" diameter wet equalizer bolts (TRFA71063)
