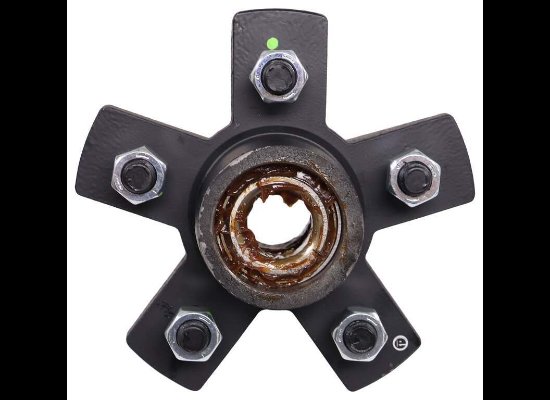

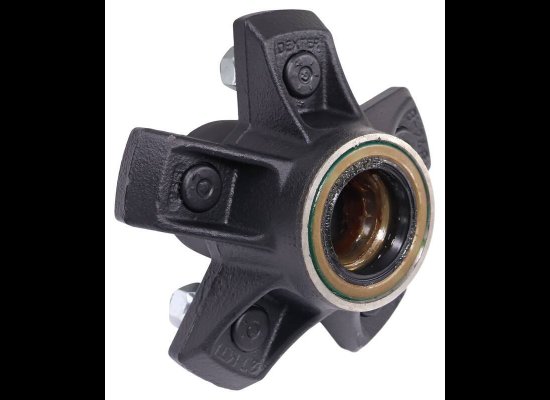

IDLER HUB ASSEMBLY - 5 ON 4.5 5X4.5, FOR 3.5K AXLES, #84 SPINDLE, 1/2" STUDS

Details

Bolt Pattern: 5 on 4.5"
Axle Capacity Rating Per Pair: 3.5K
Fits Spindle: #84
Stud Size: 1/2"

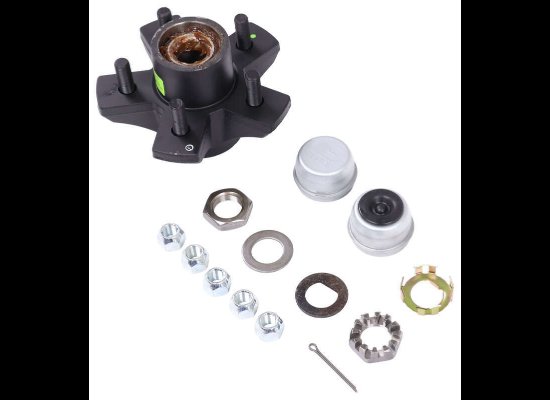

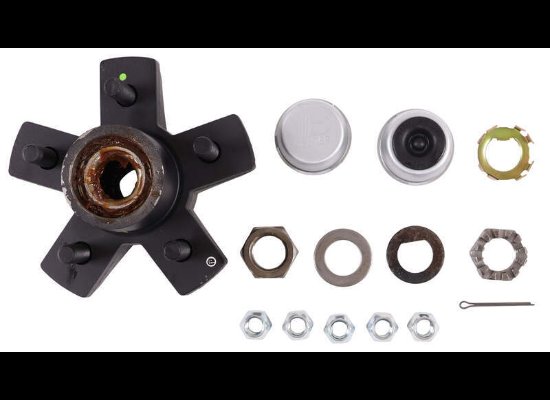

Included with this item: Hub, Bearings, Seal, Grease Cap, Lug Nuts
Finish: Painted
Inner Bearing Part Number: L68149
Lubrication: E-Z Lube® or Grease Lube
Outer Bearing Part Number: L44649
Seal Inner Diameter: 1.719"
Thread Count: 20
Package Type: Retail Packaged

Specs:

Application: 3,500-lb trailer axles with #84 spindles
Wheel size: 13" to 15"
Bolt pattern: 5 on 4-1/2"
Wheel studs: 1/2" diameter x 1-1/4" long
Weight capacity: 1,750 lbs

Bearing, Race, and Seal Information
Bearings (included)
Inner bearing: L68149 (1.378" inner diameter)
Outer bearing: L44649 (1.063" inner diameter)
Races (included)
Inner race: L68111
Outer race: L44610
Grease seal (included): 58846
Inner diameter: 1.719"
Outer diameter: 2.565"

K08-248-1G Dexter Pre Greased Trailer Idler Hub Assembly for 3.5K Axle with Hardware - 5 on 4-1/2 - EZ Lube - Pre-Greased
Replaces 84545UC1-EZ and K08-248-95
