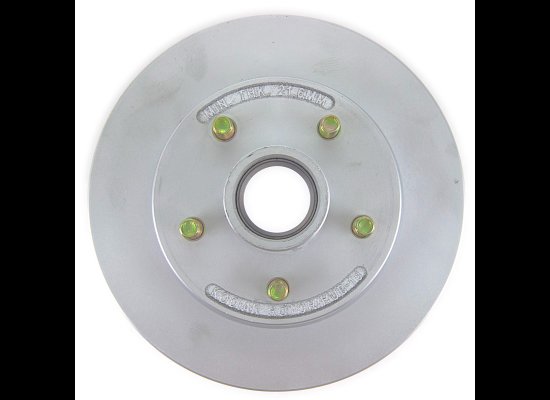

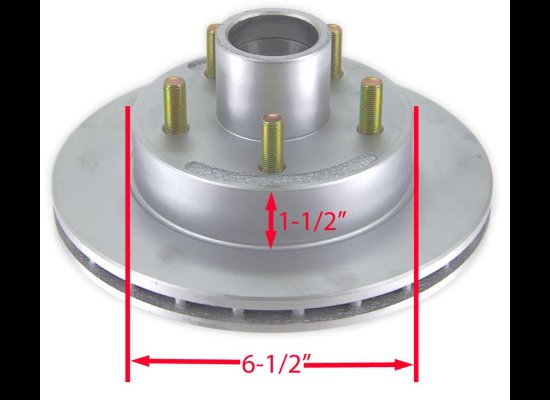

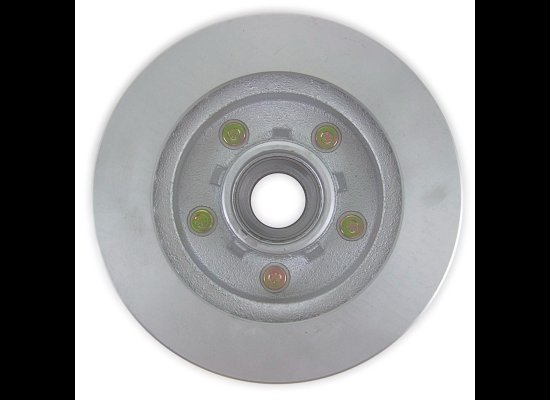

KODIAK 10" HUB AND ROTOR ASSEMBLY - 5X4.5, 5 ON 4.5", DACROMET 3,500lbs

Kodiak's hub-and-rotor assembly makes it easy to change from drum brakes to disc brakes. Made of machined cast iron with dacromet plating, this 1-piece unit is balanced for a smooth ride and furnished with standard races.

Specs:

Axle capacity: 3,500 lbs
Wheel size: 13" and larger
Bolt pattern: 5 on 4-1/2"
Wheel bolt diameter: 1/2"
Outer diameter: 10"
Bearing, Race and Seal Information

Bearings (sold separately)
Inner bearing: L68149
Outer bearing: L44649
Races (included)
Inner race: L68111
Outer race: L44610
Seal: RG06-050 (sold separately)
Inner diameter: 1.719"
Outer diameter: 2.565"

008-R/H-10-D-S Kodiak Disc Brake Integral Hub and Rotor - Dacromet Finish- 3,500 lbs
Replaces Kodiak KHR10SC (ROTOR/HUB-10-SCAD), R/H-10-D, and ROTOR/HUB-10-DAC
