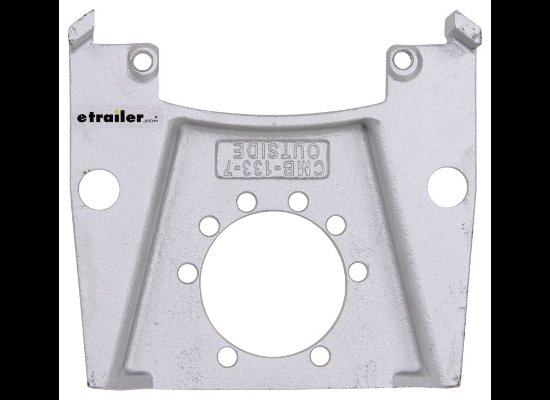

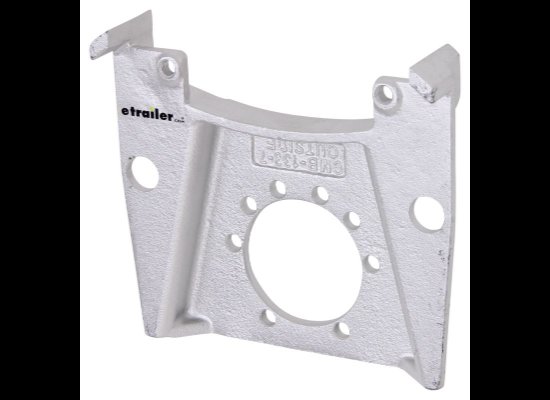

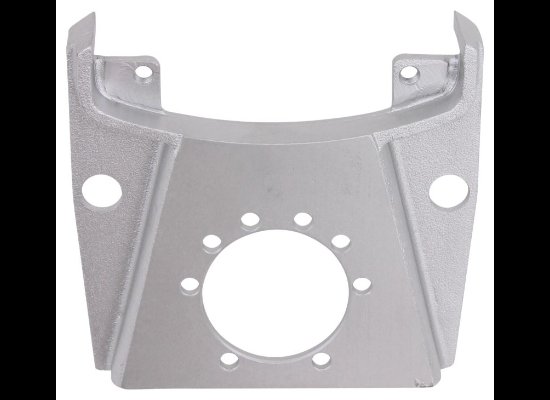

KODIAK 13" DISC BRAKE CALIBER BRACKET, GALVANIZED, 5 HOLE FLANGE, 7K

Caliper-mounting bracket is designed for use with 13" rotors or hub-and-rotor assemblies that have an 8 on 6-1/2 bolt pattern and 1/2" wheel bolts. Bracket mounts onto right-hand or left-hand 5-bolt brake flange.

Features:

Heavy-duty, ductile iron construction
Dacromet plating provides superior corrosion resistance for freshwater or saltwater use
300- to 400-Hour salt-spray rating
Embossed bolt holes provide extra thread contact for caliper guide bolts
Tight, secure connection between bracket and caliper
Side support ensures that load is carried by bracket, not bolts
Stiffeners reduce vibration when you brake
Universal design works for either left-hand or right-hand assemblies

Specs:

Application: calipers on disc brakes with over-the-hub rotors or 1-piece hub-and-rotor assemblies
Axle rating: 7,000 lbs
Rotor diameter: 13"
Brake flange configuration: 5 bolt

090-CMB-133-7-D Kodiak Disc Brake Caliper Mounting Bracket - Rotor or Integral Hub and Rotor - Dacromet Finish - 7,000 lbs
Replaces KCMB137SC (CMB-133-7-SCAD), CMB-133-7-D, and CMB-133-7-DAC
