11" Long equalizer connects slipper springs on tandem- or triple-axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed. Fits springs with 9/16" diameter eye.

Features:

Connects slipper springs on dual- or triple-axle trailers
Slip arched end of front spring into equalizer so that it rests on keeper bolt (sold separately)
Attach rear-most spring with shackle bolt (sold separately) through the eye
Suspends from center hanger (sold separately)
Transfers load and sudden impacts from one axle to another by permitting movement between the axles
Distributes weight evenly
Results in smooth ride for trailer
Constructed of high-quality, 1/4" thick, hot rolled steel
Does not include center bushing

Specs:

Fits 2" wide slipper leaf springs
Center bolt hole diameter: 7/8"
Side bolt hole diameter (for mounting spring): 9/16" diameter
Side bolt hole diameter (for keeper bolt): 3/8"

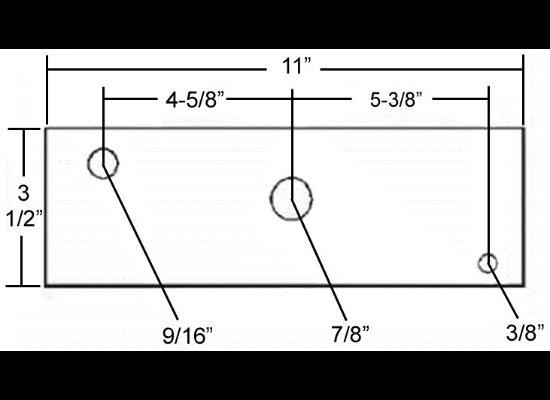

Dimensions: see diagram

EQ-1304 TruRyde Equalizer for 2" Slipper Springs - 11" Long
