OPTRONICS/WESBAR 6 FUNCTION TAIL LIGHT, PASSENGER SIDE, RS RIGHT, PS

5-5/16" x 4-9/16" Square. Incandescent trailer tail light serves 6 functions on trailers under 80" wide: brake, tail, turn, side marker, side reflector, and rear reflector. Shock proof sockets. Stud mount. Quick connect wiring.

Features:

Trailer tail light serves 6 functions on trailers less than 80" wide
Stop, Turn, Tail, Rear Reflex, Side Marker, and Side Reflex

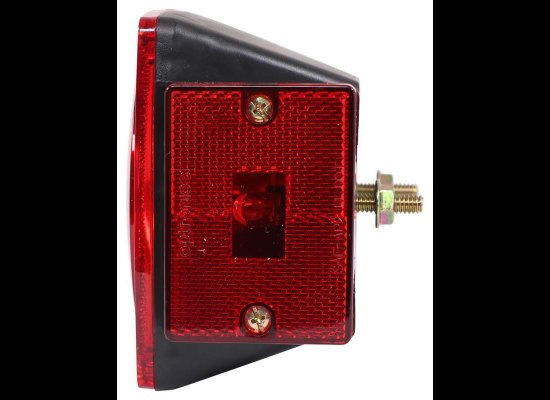

Built-in reflex reflectors remove the need for a separate reflector
Shock-proof socket protects the bulb
Incandescent bulb can be easily replaced

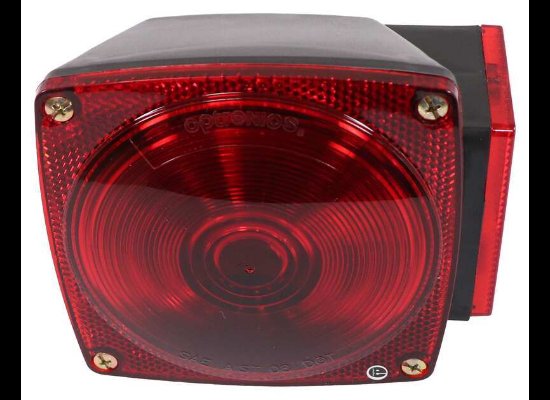

Red lens over 2 bulbs
Durable polycarbonate housing and acrylic lens
Stud mounts on trailer with included studs

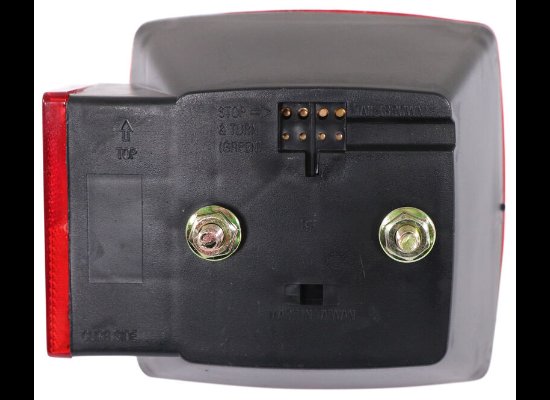

Quick connect wiring - simply insert stripped wire into holes for a secure connection
Light grounds through mounting studs

Specs:

Configuration: passenger side
Driver side: ST9RB (sold separately)

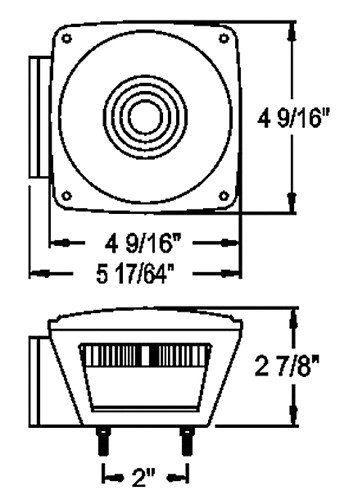

Dimensions: 5-5/16" long x 4-9/16" wide x 2-7/8" deep
Distance between mounting studs (center on center): 2"
Power draw at 12.8V:
Stop/turn: 2.5 amps
Tail: 1 amp

CROSS Uni Bond # TL4400, Wesbar # 3060, Graote # 52302, Peterson # 440, 101536, 2523073
