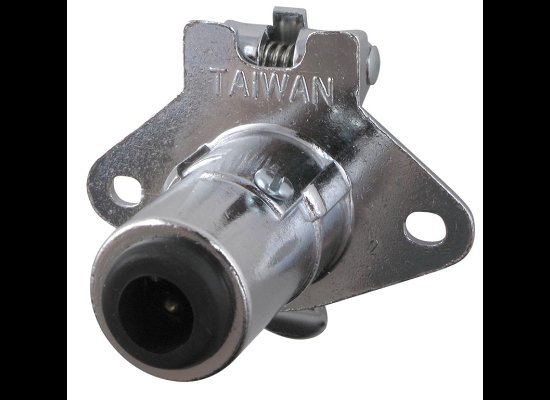

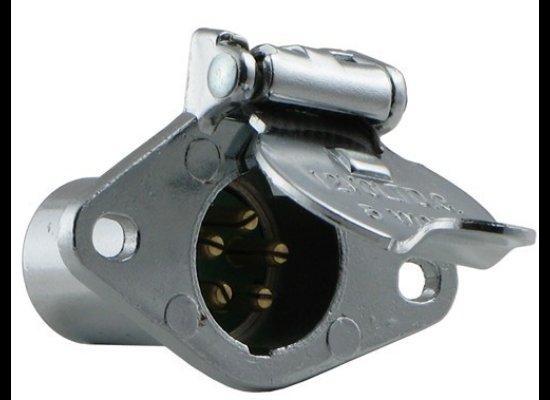

POLLAK METAL 5-WAY ROUND, CHROME, TRAILER CONNECTOR SOCKET - VEHICLE END

Establish a secure connection between your trailer and your towing vehicle with this 5-pole, round pin, wire-insertion-style socket. Chrome-plated socket has concealed terminals to provide easy assembly and durability.

Features:

Chrome-plated, zinc die-cast, 5-pole socket connects trailer to towing vehicle
Round, split brass pins
Minimum voltage drop is ensured
Dielectric (non-conducting) grease coating
Protects against corrosion and resistance
Maximum current capacity provided
Concealed terminals for durability
Provide easy assembly
Spring-loaded lid
Keeps dust and moisture out of interior
2-Hole mounting style

Specs:

Volt rating: 12 volts - 24 volts
Current rating: 15 amps
Mounting screw holes: 1-3/4"
Wiring configuration:
Color - circuit:
White - Ground Return
Green - Right Turn and Brake Lights
Yellow - Left Turn and Brake Lights
Red - Auxiliary Circuit
Brown - Tail Lights
Recommended wire gauge: 14 to 16 gauge

11-502P Pollak 5-Way, Round Pin Trailer Wiring Socket, Concealed Terminals - Chrome - Vehicle End
Replaces 11-502
