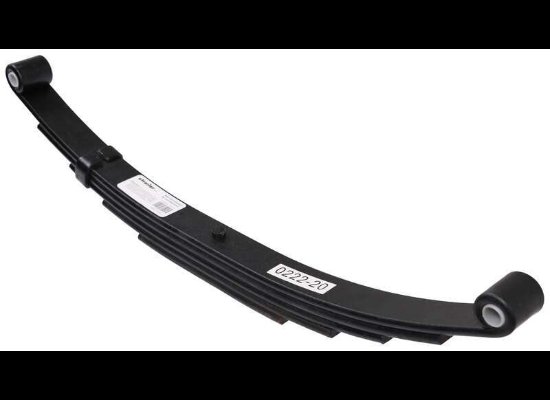

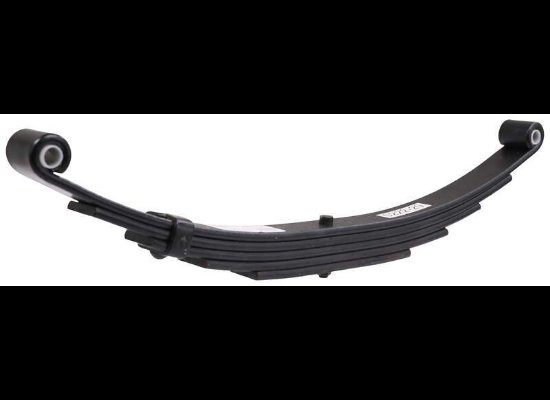

PR5 5 LEAF SPRING, DOUBLE EYE 25-1/4" L X 1-3/4" W , SPRING EYE 9/16" , FOR 5.2K - 6K AXLES

Quantity: 1 leaf spring
Spring capacity: 3,000 lbs
Axle capacity: 6,000 lbs
Length from center of spring eye to center of spring eye (unloaded): 25-1/4"
Spring width: 1-3/4"
Eye diameter with bushing: 9/16"
Eye diameter without bushing: 11/16"
Leaf thickness: 3/8"
Number of leaves: 5

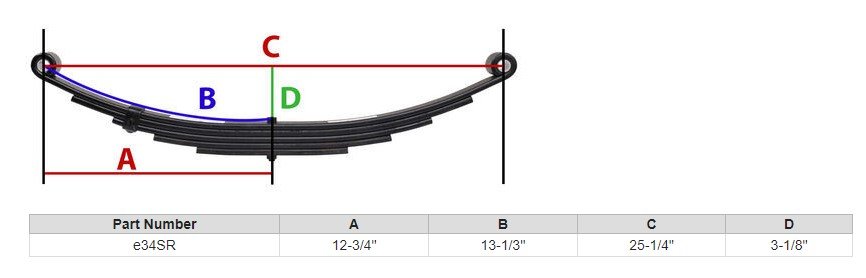

Additional dimensions: see table

REF 66200 e34SR etrailer Double Eye Trailer Leaf Spring - 5 Leaf - 3,000-lb Capacity
Compares to SP-111275
Etrailer Item # e34SR , 022-20
