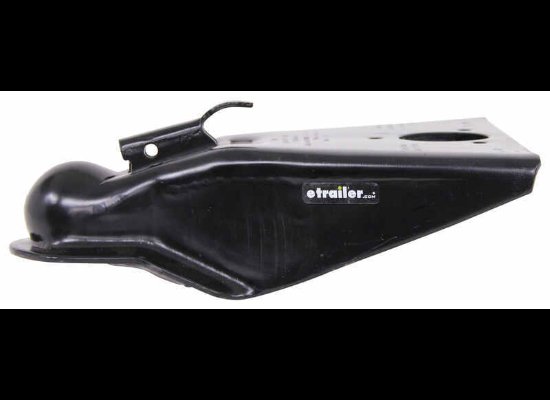

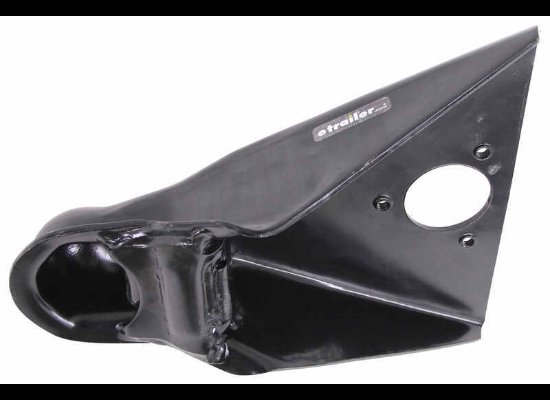

RAM 2-5/16" BALL A-FRAME TRAILER COUPLER, THUMB LATCH, BLACK, WELD ON, 14K

A-frame coupler features a thumb latch for safe, easy hookup. Simply push latch down and slide forward or back to open or close ball socket. Black powder coat finish provides durability and rust resistance.

Features:

50-Degree A-frame coupler lets you hook up your trailer to your tow vehicle
Provides connection point for hitch ball
Thumb latch makes it easy to clamp around ball
Push latch down and slide it back toward the trailer to open the ball socket
Push latch down and slide it forward to close
Sturdy steel construction
Black powder coat finish provides corrosion resistance
Built-in jack-attachment point allows for quick, easy mounting of round utility jack
SAE J684 certified
Weld-on installation

Specs:

Ball size: 2-5/16"
Jack hole diameter: 2-1/4"
Overall dimensions: 12-7/8" long x 10-7/8" wide
Pin hole diameter: 5/16"
Minimum span needed for pin or pin lock: 7/8"
Weight capacity: 14,000 lbs

CA-5400-B Ram A-Frame Trailer Coupler - Thumb Latch - 2-5/16" Ball - Black - 14,000 lbs , 263514
