RAM A-FRAME ROUND TRAILER JACK, SIDEWIND, 15-5/8" TRAVEL, 5K SUPPORT, 3K LIFT

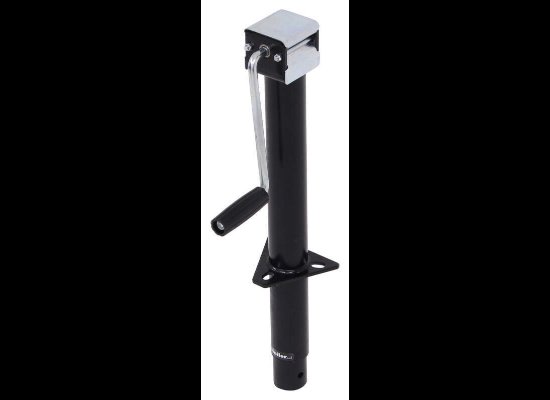

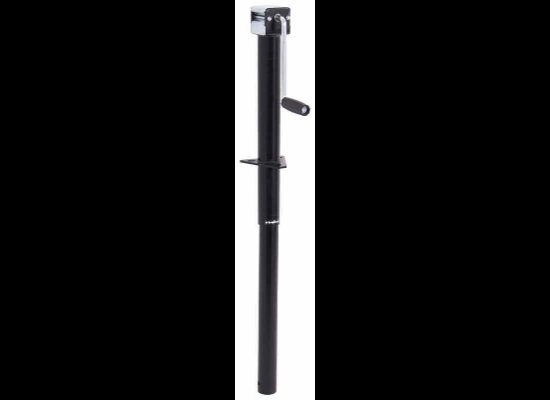

Black powder coated A-frame jack has a retracted height of 8-3/8" and an extended height of 24". The external gearbox is easily accessible, and the zinc-finished sidewind handle arm provides a sleek look.

Features:

Utility jack lets you raise and lower your A-frame trailer
Sidewind handle has zinc finish for attractive look and rust resistance
Black powder coat finish resists corrosion
External gearbox is easily accessible
Effortless greasing with built-in grease zerk
Footplate or caster sold separately

Specs:

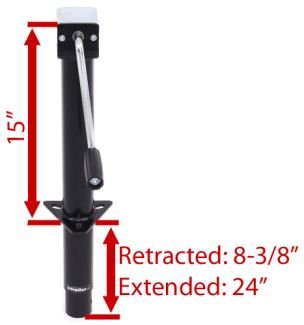

Bracket height (from bottom of inner tube to bottom of bracket):
8-3/8" Retracted
24" Extended
Travel: 15-5/8"
Clearance: 15" from bottom of bracket to top of jack
Outer tube diameter: 2-1/4"
Inner tube diameter: 2"
Handle radius: 8"
Lift capacity: 3,000 lbs
Support capacity: 5,000 lbs

TJA-5000S-B Ram Round A-Frame Trailer Jack - Side Wind - 15-5/8" Travel - 5,000 lbs
Compare to Bulldog BD1700100317
