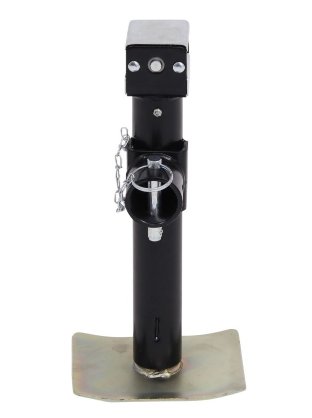

RAM PIPE MOUNT JACK, SIDE WIND, 10-1/4" LIFT 7K LIFT , 8K SUPPORT, WELD ON, BRACKET HEIGHT 10-3/8"

Highlights

7,000-Lb Lift Strength: Handles heavy trailers with steady support and smooth cranking under load.
10-1/4" Travel Range: Provides reliable height adjustment from 10-3/8" retracted to 20-5/8" extended.
Quick Swivel Storage: Pipe-mount design pivots up for travel and down for use with secure pull pin.
Stable Footing: Welded 8" x 6" footplate keeps the jack from sinking in soft ground.
Built to Last: Black powder-coated outer tube and zinc-plated inner parts resist rust and wear.
Easy Maintenance: Built-in grease zerk simplifies lubrication for long-term smooth operation.

Specs

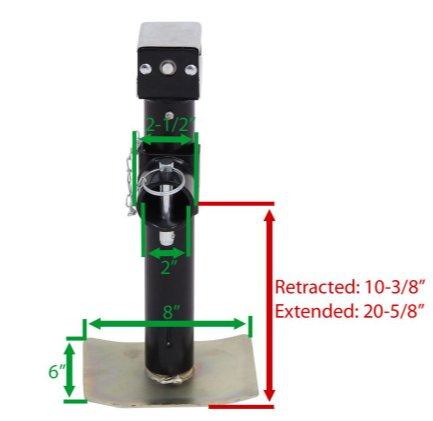

Bracket height (from bottom of foot to center of pipe mount): 10-3/8" Retracted
Bracket height (from bottom of foot to center of pipe mount): 20-5/8" Extended
Travel: 10-1/4"

Outer tube diameter: 2-1/4"
Inner tube diameter: 2"
Footplate dimensions: 8" long x 6" wide
Pipe mount diameter (Inner): 2"
Pipe mount diameter (Outer): 2-1/2"
Travel: 10-1/4"

Weight and Capacity
Lift capacity: 7,000 lbs
Support capacity: 8,000 lbs
