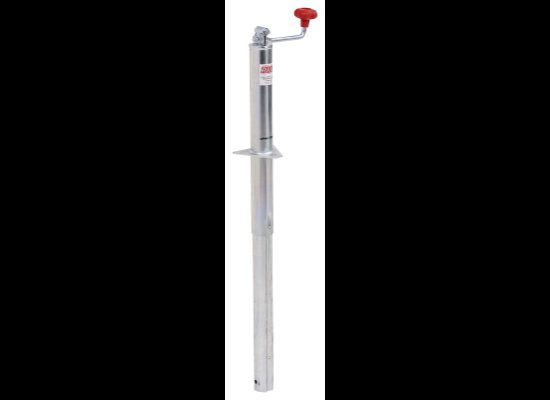

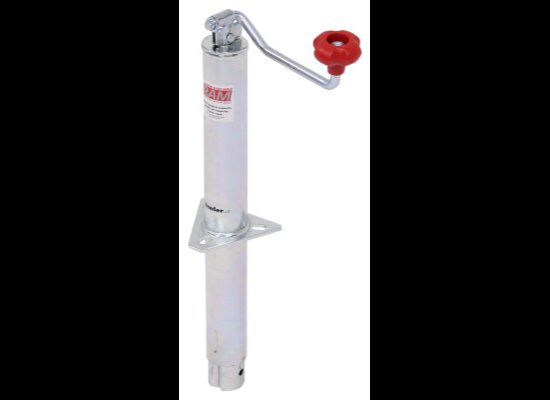

RAM ROUND A-FRAME TRAILER JACK, TOPWIND, 3K LIFT 5 K SUPPORT, 14-7/8" TRAVEL, ZINC COATED

This corrosion-resistant, zinc-plated, A-frame jack has a retracted height of 10" and an extended height of 24-7/8". The claw handle provides a sleek look and can be folded away for storage.

Features:

Utility jack lets you raise and lower your A-frame trailer

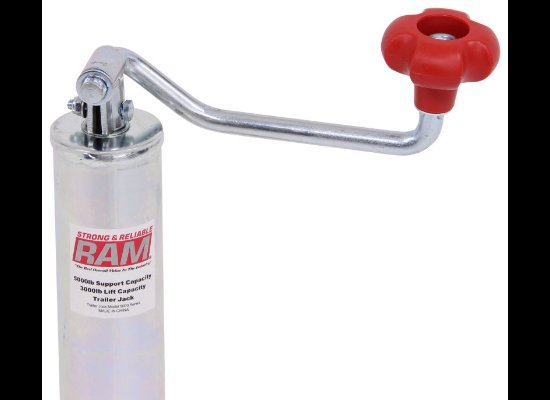

Topwind handle has comfortable claw-style knob
Handle folds away for easy storage
Durable, rust-resistant clear zinc finish
Internal gearbox provides an attractive look
Footplate or caster sold separately

Specs:

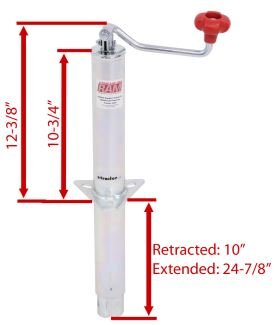

Bracket height:
Retracted: 10"
Extended: 24-7/8"
Travel: 14-7/8"
Clearance:
12-3/8" From bottom of bracket to top of handle mount
10-3/4" From bottom of bracket to top of jack
Outer tube diameter: 2-1/4"
Inner tube diameter: 2"
Lift capacity: 3,000 lbs
Static capacity: 5,000 lbs
Weight: 10.5 lbs
