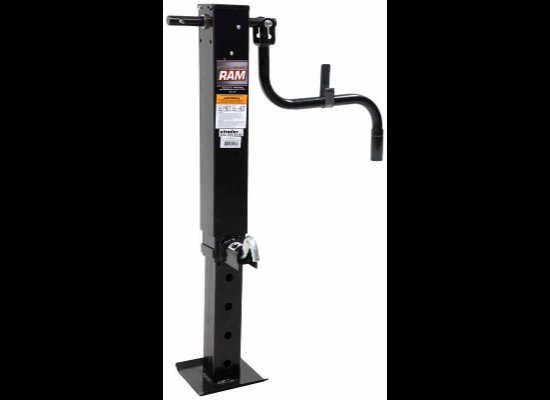

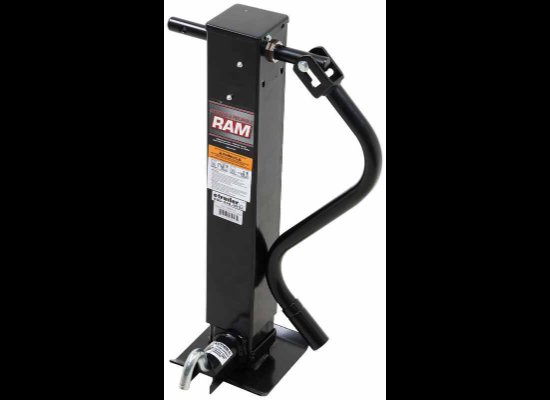

RAM SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 25-7/8" LIFT 10K LIFT

Pull the front-facing plunger pin on this jack to release the drop leg for 13-1/2" of lift on top of the 12-3/8" of screw travel. Durable screw offers increased strength. Built-in grease zerk allows simple greasing. Sidewind crank included.

Features:

Heavy-duty utility jack lets you raise and lower your trailer
Ideal for agricultural and commercial applications
Drop leg with spring return increases overall extension for maximum adjustability
Plunger pin positioned to the front
Durable 1" jack screw allows for heavy lifting
Twin thrust bearings make extending and retracting jack easy
Effortless greasing with built-in grease zerk
Black painted inner and outer tubes
Sidewind handle has curved edges - no sharp ends
Handle can be secured for travel with included weld-on clip
Footplate minimizes sinking in soft ground
Weld-on installation

Specs:

Height:
28" Retracted
40-1/4" Extended
Total lift: 25-7/8"
Screw travel: 12-3/8"
Drop leg travel: 13-1/2"
Lift capacity: 10,000 lbs
Support capacity: 12,000 lbs
Outer tube width: 4"
Inner tube width: 3-1/2"
Footplate dimensions: 8-1/4
