RAM SQUARE DIRECT WELD ON JACK, SPRING RETURN DROP LEG, 26-1/2" LIFT 12K LIFT , 20K SUPPORT

Step on the dual-pin foot lever on this heavy-duty jack to release the drop leg for 13" of lift in addition to the 13-1/2" of screw travel. Durable screw offers increased strength. Built-in grease zerk allows effortless greasing.


Features:

Heavy-duty utility jack lets you raise and lower your trailer
Ideal for agricultural and commercial applications

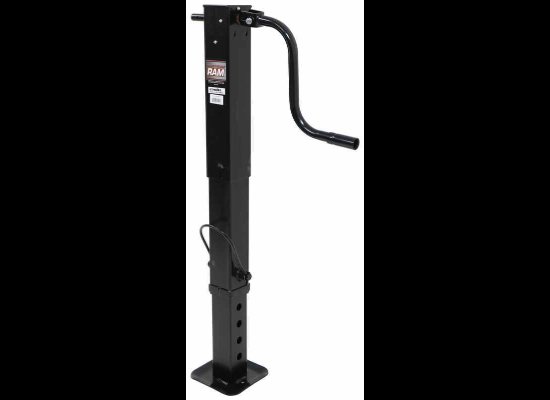

Drop leg with spring return increases overall extension for maximum adjustability
Easy-to-use foot lever positioned to the front
Durable 1-1/4" jack screw allows for heavy lifting
Twin thrust bearings make extending and retracting jack easy
Effortless greasing with built-in grease zerk
Black powder coated finish on inner and outer tubes

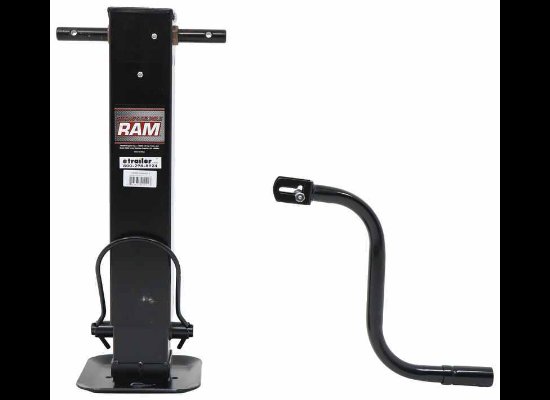

Sidewind handle has curved edges - no sharp ends
Footplate minimizes sinking in soft ground
Weld-on installation

Specs:

Height (from bottom of foot to top of jack):
29-1/2" Retracted
56" Extended
Total lift: 26-1/2"
Screw travel: 13-1/2"
Drop leg travel: 13"
Lift capacity: 12,000 lbs
Support capacity: 20,000 lbs
Outer tube width: 4-3/8"
Inner tube width: 4"
Footplate dimension
