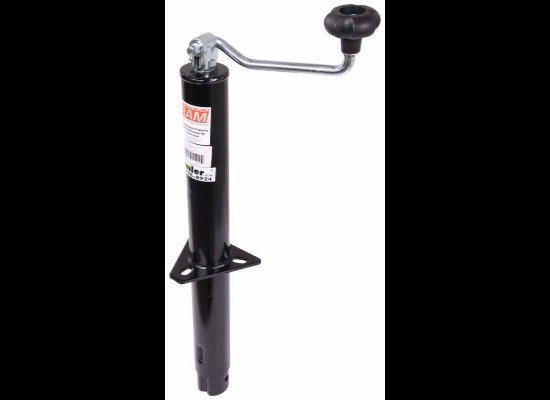

A-Frame Jack, 5K, Top Wind, 15" Lift, 10" Bracket Height, Ram, Knob Handle.

Black powder coated A-frame jack has a retracted height of 10" and an extended height of 25". The black claw handle with a zinc-finished arm provides a sleek look and can be folded away for storage.

Features:

Utility jack lets you raise and lower your A-frame trailer

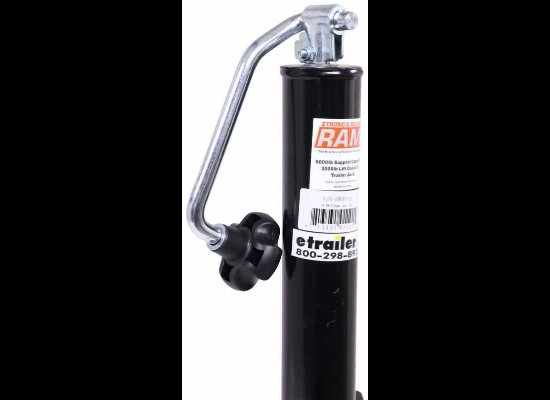

Topwind handle has zinc finish for attractive look and rust resistance
Black, claw knob allows for comfortable grip
Handle easily folds away for storage
Black powder coat finish resists corrosion
Internal gearbox provides an attractive look
Footplate or caster sold separately

Specs:

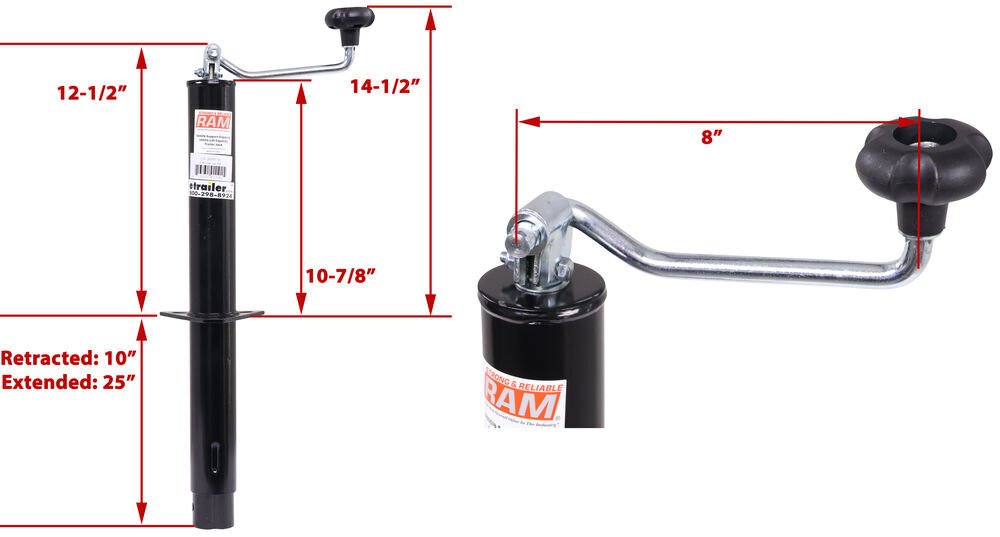

Bracket height (from bottom of inner tube to bottom of bracket):
10" Retracted
25" Extended
Travel: 15"
Clearance:
10-7/8" From bottom of bracket to top of jack
12-1/2" From bottom of bracket to top of handle mount
14-1/2" From bottom of bracket to top of handle
Outer tube diameter: 2-1/4"
Inner tube diameter: 2"
Handle radius: 8"
Support capacity: 5,000 lbs
Lift capacity: 3,000 lbs

TJA5000TB
